Product profile
HF Read/Write Head YS-HR-I12C0
Product Details
The YS-HR-112C0 series products are a high-stability non-contact integrated industrial RFID read/write head. It supports the RS485 protocol and can use the standard MODBUS communication protocol. It is fixed with two M5 nuts. This series of products has good reading performance and a high protection level. It is suitable for the automated production processes of various industries, as well as for demanding RFID application environments.
Product Parameters
|
Specification Parameters |
Product Model |
|
|
Reading Distance |
(related to the tag) |
|
|
Communication Interface |
|
|
|
Communication Protocol |
|
|
|
Communication Rate |
|
|
|
Power Supply Voltage |
|
|
|
Average Current |
|
|
|
Indicator Light |
Indicator Light |
|
|
Overall Dimensions |
|
|
|
Physical Parameters |
Overall Dimensions |
40x70x80mm |
|
Fixing Type |
2 M5 Screw Holes |
|
|
Shell Material |
ABS |
|
|
Shell Color |
Black |
|
|
Total Machine Weight |
Approximately 30g |
|
|
Radio Frequency Parameters |
Wireless Protocol |
ISO 15693 |
|
Operating Frequency |
13.56MHZ |
|
|
|
Output Power |
22dBm |
|
|
Wireless Speed |
26.48Kbit/s |
|
Application Environment |
Operating Temperature |
-25℃ ~ +70℃ |
|
Storage Temperature |
-25°C ~ +85°C |
|
|
Humidity |
5% ~ 95%RH (No Condensation) |
|
|
Waterproof and Dustproof Rating |
IP67, EN 60529 |
|
|
Vibration Resistance |
2mm
(f = 5.2 - 9.5 Hz), EN 60068-2-67 |
|
|
Conducted Immunity to Radio-Frequency Fields Test CS |
3V, Pass Level A (Including Main Frequency); 10V, Pass Level A (Excluding Main Frequency) |
|
|
Electrostatic Discharge Immunity ESD |
Contact
Discharge, 4KV |
|
|
Certification and Declaration |
CE |
ETSI
EN 301489-3, ETSI EN 300330-1 |
|
|
RoHS Directive |
|

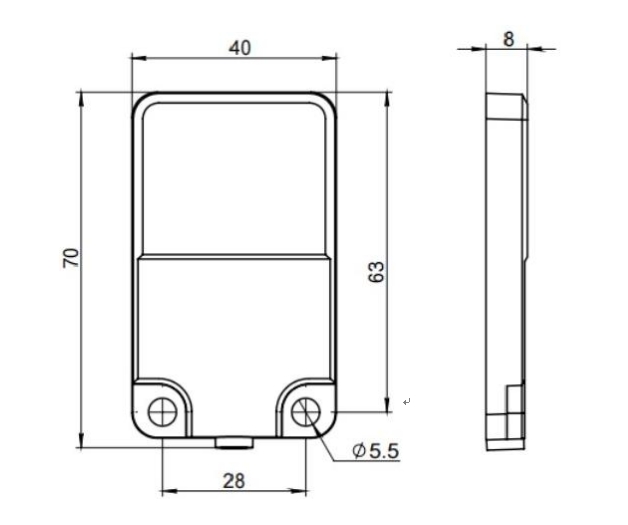

Product Dimension Diagram:
